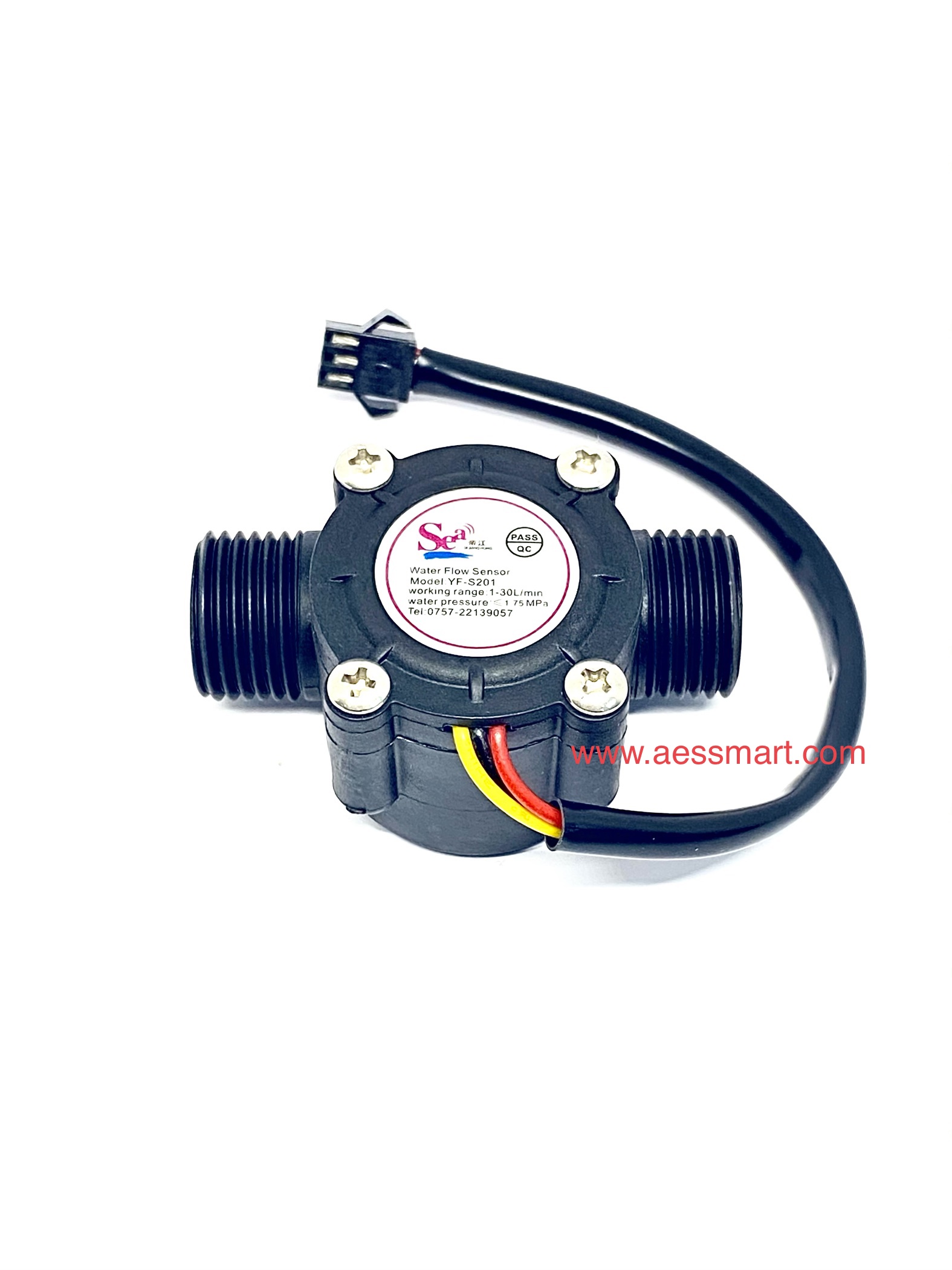

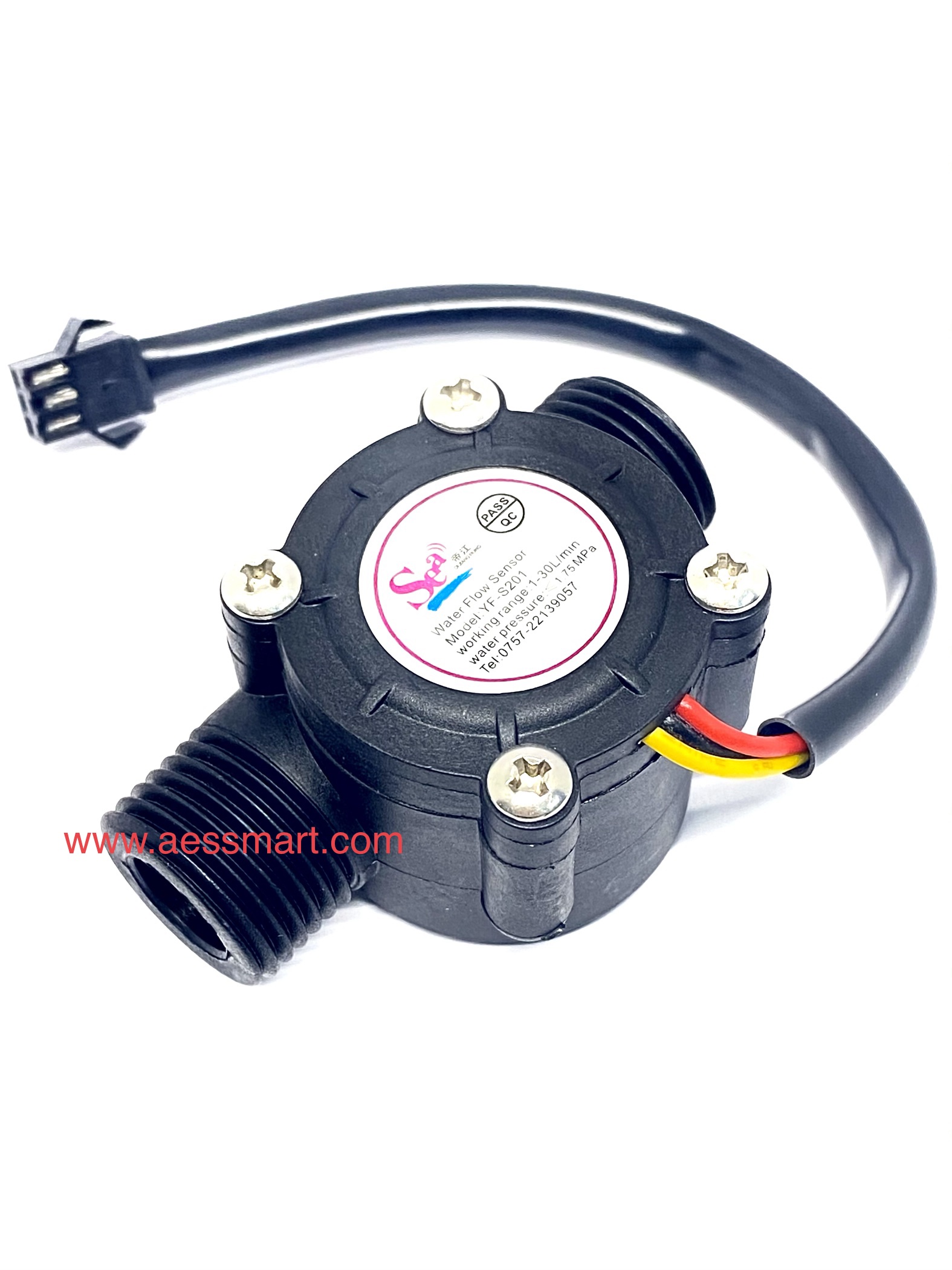

S367 : Water Flow Sensor Flowmeter Hall Water control 1-30L/min 2.0MPa

เซนเซอร์วัดอัตราการไหลของน้ำ Water Flow Sensor Flowmeter Hall Water control 1-30L/min 2.0MPa Flow flow meter water sensor คละสี

1.the lowest rated working voltage: DC4.5 5V-24V
2.maximum operating current: 15 mA (DC 5V)
3.working voltage range: DC 5~18 v
4.load capacity:  10 mA (DC 5V) or less
5.use temperature: 80 Degree   or less
6.operating humidity range: 35%~90%RH (no frost)
7.allowing pressure: pressure 1.75Mpa
8.temperature: -25~+80 ° c
9.External threads: 1/2"
10. kept under the temperature: - 25 ~ + 80 Degree
11. keep humidity: 25% ~ 95% RH
12. Attention:Taboo water or water vapor into the circuit board

Apply to water heaters, credit card machines, water vending machine, flow measurement device.
